Brand Name : | IRIS |
Model Number : | 500KG |
Certification : | ISO9001 |
Price : | USD18979-USD22120/Set |
Payment Terms : | T/T |
Supply Ability : | 30 sets /month |
Delivery Time : | within 30 working days |
500kg Induction Melting Oven Aluminium Melting Furnace With 400kw Power Supply Cabinet
500kg Induction Melting Oven Aluminium Melting Furnace With 400kw
Power Supply Cabinet advantage as follows:
High melting efficiency for the scarp metal.Structure
compact,strong over load ability, Furnace easy to operating process
and melting safety.The temperature surrounding the furnace is
lower, dustless, good working environment.You can choose the
environmental protection equipment.
Basic Parameters | ||||||
Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T |

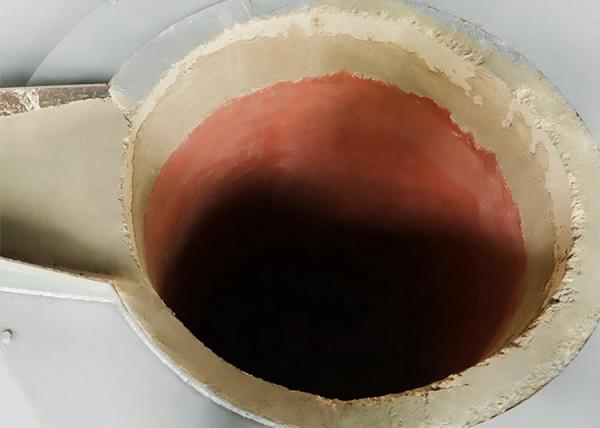

The melting furnace mainly composed of power control cabinet and
melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure,
over-current, over-voltage, lack phase information
![]() |
