Casting Production Line Machinery With Brass Bar Copper Tube Casting Machine

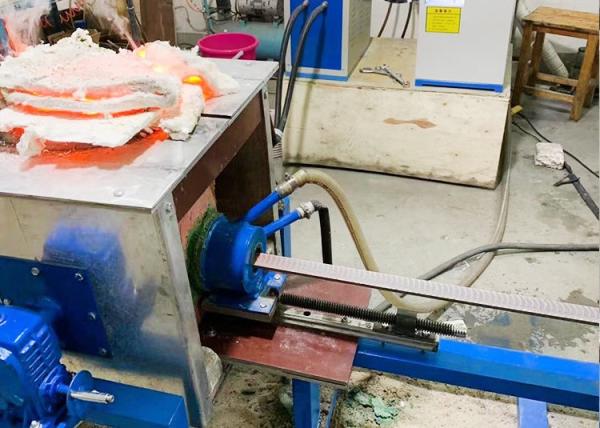

Copper Horizontal Continuous Casting Machine is a production line for producing the copper rod, copper tube, copper bar, copper plate, copper billet, copper wire, copper strip etc. And These production lines are widely service for the industries like produce the electric wire, cable, electron, clockmaking, water heating equipment, refrigeration.

Brass casting machines made available by us are continuous casting machines that are used for manufacturing brass castings in bars, tubes, sections and strip forms. These continuous casting machines can also be used in conjunction with the pre-melting furnace and can be offered as small compact casting machines to large casting machines with the option of top and side core ejectors/extractors.

Technical parameter of the copper rod making machine:

Main equipment configuration of the copper rod making machine :

1. Melting and holding furnace: intermediate frequency power cabinet and furnace body
2. Crystallizer
3. Tractor
4. Temperature controller
5. Automatic winding machine
Accessories: main extension connection, water-cooled cable, wired remote control switch

Technical requirements for copper rod making machine

1. Purpose: Horizontal continuous casting production and processing of 2 Φ8 ± 0.3 mm and 8*40 rectangular copper alloy bars.
2. Production process: The copper alloy raw materials are melted at a high temperature and then cooled by a mold, and two Φ8 ± 0.5 mm copper wires and 8*40 square copper alloys are continuously drawn out.
3. Furnace body: The holding furnace is equipped with a set of power supply, and the effective value of the installed furnace is 50 kg (calculated by the copper material).
4. Melting furnace and holding furnace heating method: all solid-state IGBT transistor modular intermediate frequency induction heating, maximum temperature: 1500℃, temperature control accuracy: ±5℃.
5. Crucible requirements: silicon carbide isostatically pressed graphite material, reusable, continuous use at 1500°C for 300 hours and above.
6. Temperature measurement method: platinum rhodium thermocouple temperature measurement, temperature measurement location: the outer wall of the crucible.
7. Temperature control method: Intelligent temperature control, which can automatically control the temperature according to the set temperature, and realize the real-time display of the melt temperature.
8. Traction mode: servo motor, traction 1 piece, casting speed 0-0.75 m/min.

Zhengzhou Iris Electromechanical Equipment Co., Ltd. is an excellent supplier established in the Central Plains region, adhering to the enterprise spirit of "professional foreign trade, professional heating" and contributing to the overseas export of China's industrial heating equipment. Our business scope includes: KGPS series thyristor intermediate frequency heating equipment (steel shell melting furnace, aluminum shell melting furnace, heating furnace), two SCR series, parallel power supply, IGBT MF, HF super audio heating equipment (melting furnace, forging furnace, Quenching furnace, welding machine, heating furnace), resistance furnace, CNC quenching machine tool, cooling system and auxiliary transformer and other equipment.

Zhengzhou Iris Electromechanical Equipment Company was established in 1989 and is located in Zhengzhou City, Henan Province, China. It has two standardized modern workshops and an experimental building with a construction area of ​​8,000 square meters. There are a large number of professional technical research engineers, including 12 technical engineers and 5 senior engineers.

Certificate

Work site example

The products of Zhengzhou IRIS Electromechanical Equipment Company have been exported all over the world, such as Australia, Russia, Italy, Vietnam, Singapore, Indonesia, the United States, South Korea, Chile, Romania, Saudi Arabia, Nigeria, Kenya, and more than 10 countries and area.
