Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

    Buy cheap Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace from wholesalers

    Buy cheap Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace from wholesalers
    • Buy cheap Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace from wholesalers

    Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

    Ask Lasest Price
    Brand Name : IRIS
    Model Number : IRIS-B1
    Certification : CE
    Price : USD1,699-USD2,699/set
    Payment Terms : T/T、Credit card
    Supply Ability : 10 Set/Week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

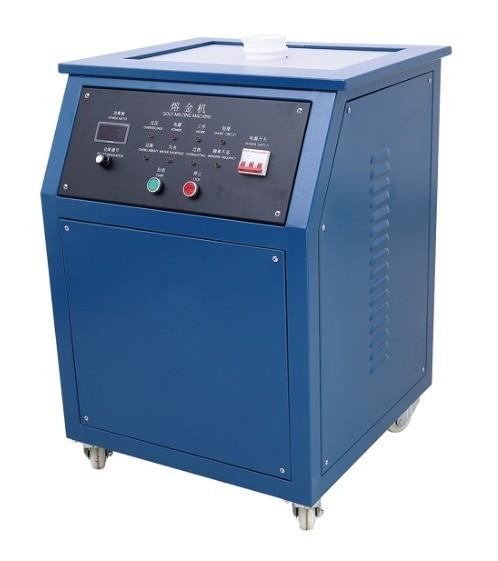

    Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

    Jewelry Melting Furnace IGBT Platinum Melting Furnace 2kg


    Feature:

    1. Use the IGBT module and Inverting technologies of third generation, at least 20% energy comparing with KGPS thyristor type induction system,and more reliability, lower maintenance cost.
    2. 100% Duty cycle, continuous working is allowed at maximum power output.
    3. Display of heating power and heating current and oscillating frequency.
    4. Convenient to change furnace crucible for different material melting.
    5. Small size, light weight, and convenient to move.And install easily


    The parameter of theJewelry Melting Furnace IGBT Platinum Melting Furnace 2kg:


    ModelIRIS-B1IRIS-B2
    Power supply3 phase 380V ± 10%, 50 / 60HZ3 phase 380V ± 10%, 50 / 60HZ
    Power15 kw( adjustable)15 kw( adjustable)
    Applicable metalPlatinum, Palladium, Gold, K Gold, Silver, CopperPlatinum, Palladium, Gold, K Gold, Silver, Copper
    Melting time2 minutes / furnace2 minutes / furnace
    Maximum capacity1 kg (Platinum)2 kg (Platinum)
    Temperature2800℃2800℃
    Machine size1180x690x500 mm1180 * 680x500 mm
    Machine weight88 kg90 kg
    Heating technologyIGBT induction heatingIGBT induction heating
    Water pumpBuilt-inBuilt-in
    Cooling methodWater coolingWater cooling

    FQA:


    1. How long is the delivery time?
    The products wil be sent within 7days after the full payment.


    2. What is the warranty time?
    One year.


    3. What are the accessories for the machine?
    We will send you two induction coils for free.


    4. How to install your machine?
    we have installation instruction papers and videos, we will teach till you can do it yourself.


    5. I still have the question , and i don't understand ...?
    Please send us the inquiry , 24 hours service for you.


    Tips:

    1. Details of prices,pls on-line or email consulation.

    2. Picture for reference only,tiny chromatic,pls take material object as the standard.

    3. Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.

    Thanks for your reading ! Welcome to contact us !
