    Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace

    Ask Lasest Price
    Brand Name : IRIS
    Model Number : IRIS-g100
    Certification : ISO9000
    Price : USD9969-USD12699/set
    Payment Terms : L/C, T/T
    Supply Ability : 5 Sets/Month
    Delivery Time : Within 25 days
    • Product Details
    • Company Profile

    Tiltable 380V Heat Treatment Furnace Steel Hardening And Tempering Furnace

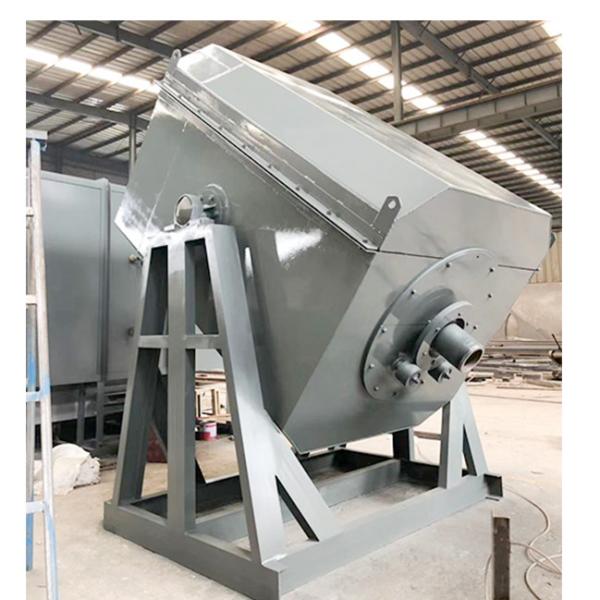

    For Heat Treatment Steel Surface Hardening And Tempering Furnace Tiltable Rotary Drum Resistance Furnace


    The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts. The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.



    Technical parameter of the Nails Hardening Machine


    Rated power45kw/60Kw
    Rated voltage380V
    Number of phases3 phases
    Rated frequency50Hz
    Rated temperature950℃
    Number of temperature control zones1 zone
    Effective drum heating size

    Ф400×500

    Ф500×650
    Equipment dimensions

    2450×2300×2150mm

    Weight2960Kg
    Heating methodhigh temperature resistance band
    Productivity100kg/h ,150Kg/h
    Temperature control methodIntelligent digital display instrument and PID temperature control; with over-temperature alarm
    Furnace temperature uniformity≤±8℃ (constant heat preservation stage)
    Furnace surface temperature rise≤environment+30℃
    Temperature control accuracy≤±2℃
    Furnace structurefull fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum
    Insulation thickness380mm
    Roller rotation speedstepless frequency conversion adjustment
