Brand Name : | IRIS |
Model Number : | IR-TF |
Certification : | CE |
Price : | USD 15000-25000 per set |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 500SETS per month |
Delivery Time : | 30 days |
Hardening And Tempering Furnace Tempering Machine Automatic
Continuous Hardening And Tempering Furnace

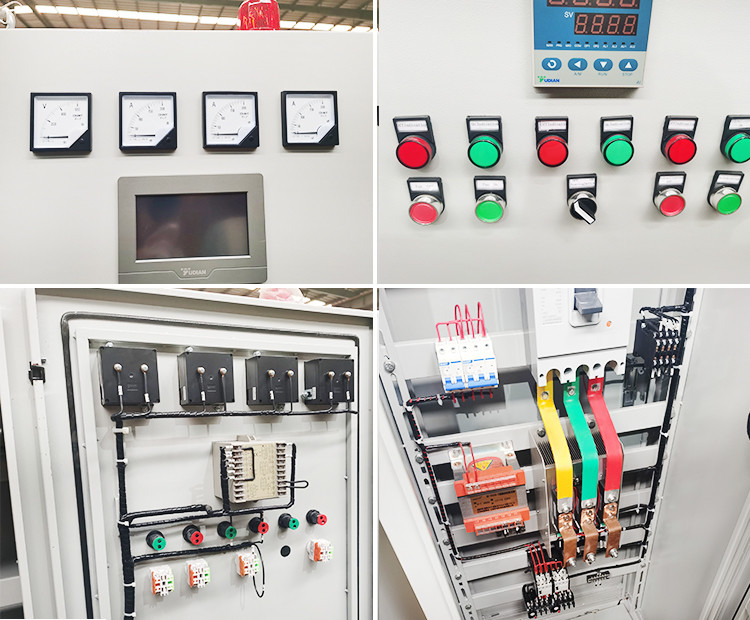

Electrical control systel
Power supply | 480V 60Hz |
Cabinet shell | dustproof and waterproof |
Temperature control power components | West SSR360A/1100V high current high voltage solid state power module |
Heating element | Beijing Shougang, high temperature 0Cr25AL5 resistance belt |
Electrical components | Chint Electric |
Thermocouple | Shanghai No. 2 Automation Instrumentation Factory |
Dimensions of the electrical cabinet | 500×400×1600 mm |
Weight | 120Kg/unit |
Parameter
Effective size | Ф700mm×1000mm |
Rated power | 36KW |
Maximum temperature | 550 ℃ |
Heating zones | 1 zone |
Temperature control | intelligent instrument PID |
Power executive components | SSR360A/1100V solid state power module |
Temperature control deviation | ±2°C |
Temperature control accuracy | 0.3 grade |
Soaking method | forced convection with fan on the furnace top |
Furnace temperature uniformity | ≤±3℃ |
Rated furnace capacity | ≤400Kg |
Heating time of empty furnace | ≤1.2h |
Empty furnace loss | ≤20KW |
Furnace wall temperature rise | ≤ ambient +30 ℃ |
Furnace cover lifting method | hydraulic |
Furnace weight | 2800Kg |
Dimensions | 1600mm×1800mm×2100mm |
![]() |
