1.Induction heating melting furnace use crucible high temperature
to heat metal.then can melt,refine,casting,etc production.
2.Can melt platinum, rhodium and
palladium,gold,silver,copper,steel,aluminium, Activated carbon,
gold dust sands, electrolysis mud, gold and silver powder, tin ash
tin slag etc.
3.Induction heating melting furnace can melt weight from
0.001KG--500KG per time.melting time from 5-40 minutes. max
temperature will be 1500C--2000C.

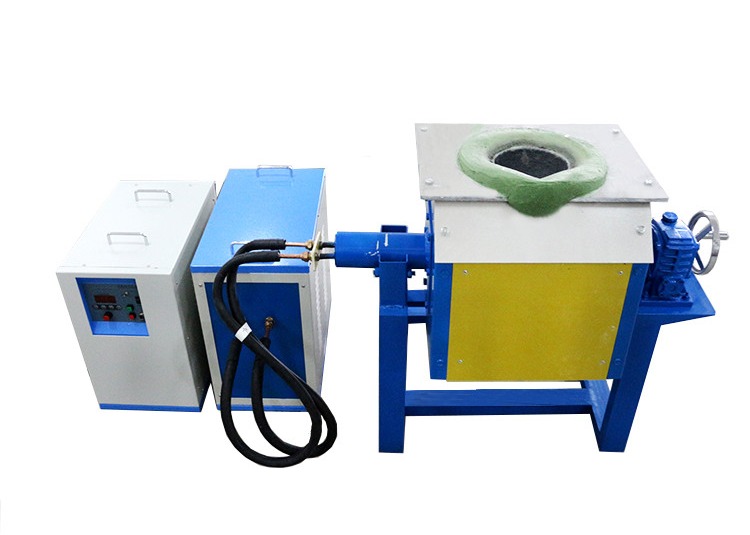

4.Induction heating melting furnace have fixed type,push out
type,auto pouring type,furnace up down moving type.
110kw medium frequency smelting furnace 50kg -200kg stainless steel
melting furnace feature
110kw medium frequency smelting furnace 50kg -200kg stainless steel
melting furnace heating principle
The flow of medium-frequency and high-frequency machine is made of
circular or other shape of the heating coil (usually with copper
production). A coil which produces changes in the magnetic polarity
of the instantaneous beam, the metal object is heated coil placed
on the magnetic beam will be heated through the whole object, the
object being heated inside the heating current in the opposite
direction, there will corresponding large eddy currents. Because of
the heated object memory in the resistance, it will have a lot of
Joule heat, so that the rapid rise in body temperature itself.
Metallic material is heated to achieve for all purposes.
110kw medium frequency smelting furnace 50kg -200kg stainless steel
melting furnace technical parameter
| Output power | 110KW | Dimension(mm) | 560*460*475mm |
| Oscillation frequency | 30~200KHz | Gross Weight | 450Kg |
| Voltage range | 70V~550V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 170A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100%24-hour continuous operation |
| Application | Melting gold, silver, copper, iron, steel, stainless steel,
platinum and any metal items |
110kw medium frequency smelting furnace 50kg -200kg stainless steel
melting furnace packaging & delivery
1. All the goods will be test and packed well before shipping to
avoid damage during delivery.
2. Plastic inside,Polyfoam filled,Carton Outside.
3. Usually we send the goods by express delivery such as DHL,
FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or
by air.
